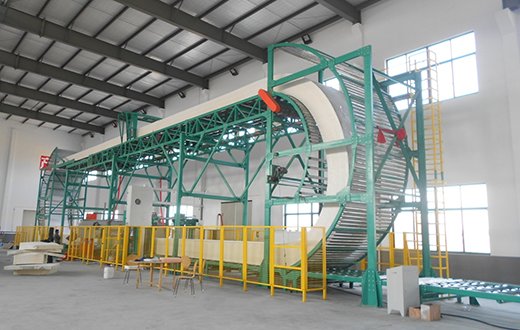

Looper Cutting Machine

Main Specification:

1) Main machine total dimensions: L35m*W6.2m*H8.8m,（Form a complete set of 60 meters feed conveyor line）

2) Clamp width of the guide clamp system: 1000mm~2300mm/electric adjustment.

3) Both sides of machine with belt guiding device for foam conveying.

4) Cutting size of the block cutter: W1000mm~2300mm, H1300mm.

5) Cutting size of the side cutters: W1000mm~2300mm, H1300mm.

6) Rolling size of the foam sheet rewinder: W1000mm~2300mm, Dia1800mm.

7) Power of the vacuum system: 5.5kw external fan*2(vacuum system put under cutting head).

8) Total power: 50kw.

9) General control cabinet with chilling system.

Inquiry Now

Foam Cutting Specification

1) Foam cutting dimensions: L60m~62m, W1m~2.2m, H1.2m.

2) Foam cutting thickness scope: 2mm to 30mm, cutting accuracy ±0.2mm(δ2mm~5mm), ±0.3mm(δ6mm~10mm).

3) Foam cutting length scope: unlimited setting(foam sheet rewind rolling diameter doesn’t exceed 1800mm).

4) Foam cutting density scope: 10kg/m3~55kg/m3.

5) Foam cutting speed scope: 0~120m/min(cutting speeds are different in cutting different foams).

Performance

1) Foam cutting controlling system: SIEMENS system.

2) General function: a full system of long foam conveying, sides cutting, horizontal peeling and foam sheet rewinding.

Inquiry Now
