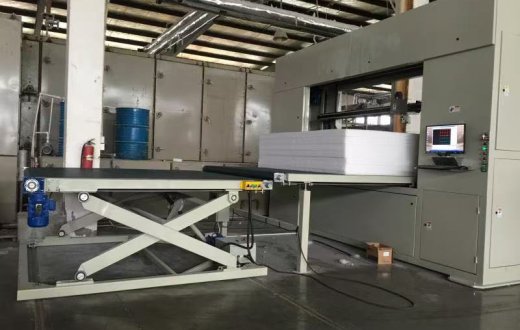

CNC vertical cutting machine
CNC Vertical cutting machine cut foam by ring blade, its cutting speed can reach 60-100m/min, CNC vertical cutting machine cutting speed is much faster than normal vertical cutting machine, one set of CNC vertical cutting machine equal with 7 sets of normal vertical cutting machine. CNC vertical cutting machine can increase the foam cutting efficiency a lot and also save labour cost at the same time.
Features
Belt working table
Self-checking system
Blade broken protection system
Blade being sharpened by a motorized grinding device during the cutting procedure
Windows control system with UK operating software
ㅤData
Machine size | 6600mm*3800mm*2400mm |
Maximum cutting size | 4500mm*2200mm*1200mm |
Machine weight | 3.2T |
Blade size | 10330mm*3.8mm*0.6mm |
Total power | 9kw |
Cutting Speed | 0-100m/min |
Cutting normal foam speed | 20-60m/min |
Cutting memory foam speed | 5-20m/min |
Cutting Precision | ±1mm |
Minimum working air pressure | 6 bar |
Minimum cutting thickness | 10mm |
