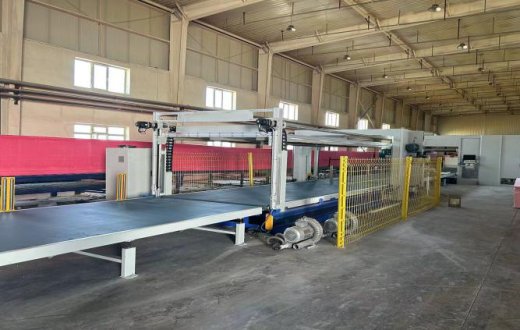

CNC Horizontal cutting machine
CNC horizontal cutting machine cut foam by ring blade, its cutting speed can reach 60-100m/min, CNC horizontal cutting machine cutting speed is much faster than normal horizontal cutting machine, one set of CNC horizontal cutting machine equal with 3-4 sets of normal horizontal cutting machine. CNC horizontal cutting machine can increase the foam cutting efficiency a lot and also save labour cost at the same time.
Features
Belt working table
Self-checking system
Blade broken protection system
Blade being sharpened by a motorized grinding device during the cutting procedure
Windows control system with UK operating software
Main blade working 45HZ
Control panel have safety features(emergency switch, main panel switch)
Blade guide rail power adjustable system
Servo system power supply stabilizer
Auto sensing system
X+Y+Z Axis Servo Motor: ESTUN brand
X+Y+Z Axis VFD(Variable-frequency Drive) : Mitsubishi brand
Relay,Contactor, Phaser,：Schneider brand
Solenoid valve, Electronic transformer, Button & Switch: Schneider brand
Data
Machine size | 6600mm*3800mm*2400mm |
Maximum cutting size | 4500mm*2200mm*1200mm |
Machine weight | 3.2T |
Blade size | 10330mm*3.8mm*0.6mm |
Total power | 9kw |
Cutting Speed | 0-100m/min |
Cutting normal foam speed | 20-60m/min |
Cutting memory foam speed | 5-20m/min |
Cutting Precision | ±1mm |
Minimum working air pressure | 6 bar |
Minimum cutting thickness | 10mm |
