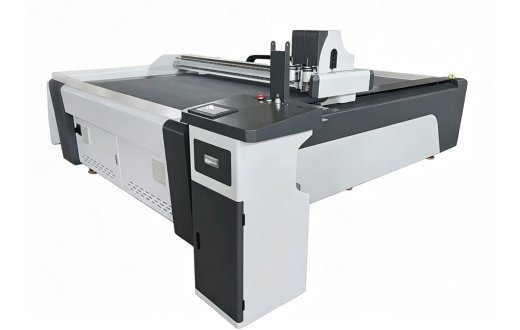

CNC Foam Cutting Machine

Description:

The CNC Foam Cutting Machine is widely used in aerospace, military, new energy, medical, and sports industries. It employs an intelligent cutting system, making operation simple; it supports fully automatic feeding, cutting, punching, grooving, chamfering, and unloading processes; the machine body is constructed from a single welded square tube and features various cutting heads including vibrating blades, circular blades, pneumatic blades, and scribing blades, supporting portable tool interchangeability.

Technical data

type1625
Cutting headServo cutters, milling cutters, pneumatic cutters, tool holders, vibratory cutters, circular cutters, spindles (optional)
Safety devicesInfrared sensor automatic emergency stop, four-corner emergency stop switches
Moving speed2000mm/s
Cutting speed0-1500mm/s
Cutting thickness0-100mm
Cutting materialfoam
Fixing methodTracking-type zoned vacuum adsorption
Repeatability±0.1 mm
Cutting precision±0.1 mm
Transmission method and distanceSerial port / Ethernet port
Buffer capacity2GB
CNC PanelTouch screen
Transmission systemServo motor and Linear guide
Instruction SetYs-CUT
Rated Power11KW
Rated voltage380V±10%
Working size1600x2500mm


Product Details
